PROFIN CONTRA-ANGLES
For shaping, contouring and finishing
The Profin® Reciprocating System is the instrument of choice for shaping, contouring and polishing natural dentition and cosmetic restorations with easy access and flexibility.
It is also the perfect instrument to remove bulk, interproximal and subgingival residual bonding materials in all parts of the dental arch.
The system comprises a choice of contra-angles and the flat Lamineer® diamond tips, which move in a reciprocating axial direction (1.2 mm stroke).
The Lamineer tips can be set to rotate freely and follow tooth contours naturally, or they can be locked radially for direct and specific modifications.
Because they are flat, the tips are also very thin, which allows optimal access. The diamond coating is only on one side for safety and control. They come in a variety of shapes, sizes and grits. Plastic and wooden tips are also available for polishing and burnishing.
Examples of Profin applications
Cosmetic Dentistry
Touch-ups can be performed safely, allowing you to create anatomical shapes for your patient’s esthetics and comfort.
Hygiene
Profin’s gentle mechanical function and reach make it the perfect instrument for dental prophylaxis. Plastic tips are recommended for scrubbing and polishing. V-shaped wings collapse to fit fine interdental spaces.
Orthodontics
Profin’s reciprocating motion allows for easy interproximal reduction with greater control and efficiency. The tungsten Lamineer tip quickly cleans up residual ortho cement without scratching healthy enamel.
Periodontics
An outstanding concept for scaling, root-planing and debridement, the Per-io-tor instruments are specially designed to optimize cleaning and planing of the rough root cementum and prevent further removal once the surface is clean and smooth.
CAD-CAM Technology
Whether you are prepping an in-lay or on-lay, refining vertical proximal walls & margins or finishing interproximal contours, you’ll find Profin’s precision an indispensable asset to your CAD-CAM restorations.
Difference between rotary instruments and Profin
Left: Risk of injury and groove formation with round diamond
Right: Atraumatic, smooth preparation with Profin Lamineer tip
SHORT RECIPROCAL MOTION (1.2mm)
insures no heat is generated by the tips
EASY ACCESS
to hard-to-reach areas
CHOICE OF TWO POSITIONS
Tips have 2 positions in the contra-angle: one is locked, the other rotates freely
OVERHANGS CAN BE REMOVED
subgingivally with no harm to soft tissues
WIDE ASSORTMENT

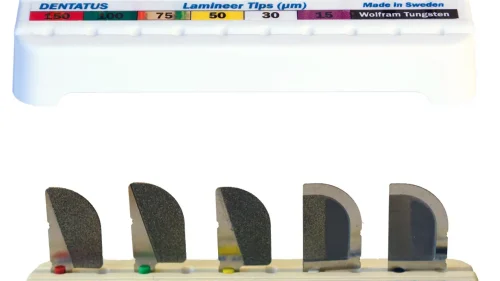

Lamineer safe-sided diamond tips come in many shapes and a wide range of grits
TIPS ALSO AVAILABLE
in Wolfram Tungsten, wood and plastic for finishing and polishing
CONTRA-ANGLES
PDX (E-Type Profin Contra-Angle for Electric or Air Motors)
 |
1 E-Type Profin Contra-Angle for Electric or Air Motors 1 Tip Plunger: EVA-60 |
PDD (Doriot Profin Contra-Angle)
 |
(US only) 1 Doriot Profin Contra-Angle (fits on Straight Nose Cone) 1 Tip Plunger: EVA-60 |
KITS
PDX/SK (E-Type Profin Contra-Angle with 5 Lamineer Tips)
 |
1 E-Type Profin Contra-Angle 5 Lamineer Tips: – 4 Diamond Tips LTA-150, LTA-S100, LTA-S50, LTA-30 – 1 Wolfram Tungsten Finishing Tip LTA-39 1 Lamineer Tip Stand with Color-Coded Chart 30 Plastic Polishing Tips: 20 EVA-2000 and 10 EVA-5000 1 Tip Plunger: EVA-60 |
PDX-P/SK2 (E-Type Profin Contra-Angle with 5 IPR Tips)
 |
(US only) 1 E-Type Profin Contra-Angle 5 IPR Tips: LTA-P5, LTA-P4, LTA-P3, LTA-P2, LTA-P1 1 IPR Tip Stand with Color-Coded Chart 1 Tip Plunger: EVA-60 |
PDX/CCK (E-Type Profin Contra-Angle for CAD/CAM)
 |
1 E-Type Profin Contra-Angle 7 Laminer Tips: – 6 Diamond Tips LTA-150, LTA-S100, LTA-S75, LTA-S50, LTA-30, LTA-S15 – 1 Wolfram Tungsten Finishing Tip LTA-39 1 Lamineer Tip Stand with Color-Coded Chart 30 Plastic Polishing Tips: 20 EVA-2000 and 10 EVA-5000 1 Tip Plunger: EVA-60 |
PDX/K10 (E-Type Profin Contra-Angle with 10 Lamineer Tips)
 |
1 E-Type Profin Contra-Angle 10 Lamineer Tips: – 8 Diamond Tips LTA-S150, LTA-100, LTA-75, LTA-50, LTA-T30, LTA-30, LTA-D30, LTA-S15 – 2 Wolfram Tungsten Finishing Tips LTA-S36, LTA-39 1 Lamineer Tip Stand with Color-Coded Chart 100 Plastic Polishing Tips 1 Tip Plunger: EVA-60 |
PDD/P5 (Doriot Profin Contra-Angle with 5 Lamineer Tips)
 |
(US only) 1 Doriot Profin Contra-Angle (fits on Straight Nose Cone) 5 Lamineer Tips: – 4 Diamond Tips LTA-150, LTA-S100, LTA-S50, LTA-30 – 1 Wolfram Tungsten Finishing Tip LTA-39 1 Lamineer Tip Stand with Color-Coded Chart 30 Plastic Polishing Tips: 20 EVA-2000 and 10 EVA-5000 1 Tip Plunger: EVA-60 |
PDD/K10 (Doriot Profin Contra-Angle with 10 Lamineer Tips)
 |
(US only) 1 Doriot Profin Contra-Angle (fits on Straight Nose Cone) 10 Lamineer Tips: – 8 Diamond Tips LTA-S150, LTA-100, LTA-75, LTA-50, LTA-T30, LTA-30, LTA-D30, LTA-S15 – 2 Wolfram Tungsten Finishing Tips LTA-S36, LTA-39 1 Lamineer Tip Stand with Color-Coded Chart 100 Plastic Polishing Tips 1 Tip Plunger: EVA-60 |
