MTI

Immediate Chairside Provisionalization



Dentatus MTI™ is the original Narrow-Body Implant System invented in the early 1990s. It allows successful provisionalization during full mouth implant therapy while providing patients an immediate function prosthesis.

The MTI Implant System is also an indispensable asset for bone graft, ridge augmentation procedures and transitional support of interim fixed restorations. Treatments may often be done in a chairside, single visit.

The implants are made of Grade I Titanium, they are available in 1.8 mm diameter, three lengths, and feature a machined surface. They engage the dense cortical plates of the jaw bone and report high initial stability. They are designed to be loaded immediately.



MTI Implants are placed in ancillary sites and immediately restored so that (1) patients never have to be without teeth and (2) surgical sites remain completely protected.

Prior to MTI, providing a denture for edentulous patients was commonplace, but the constant pressure often caused prosthetic overload during the critical bone remodeling phase and ultimately implant failure.

The MTI implants are used in conjunction with a splinted bar system and disperse mastication forces throughout the entire restoration. They have been found to aid in the osseointegration of the permanent implants and provide patients with a sense of what is to come – engaging them in the restorative design process at an earlier stage, leading to higher patient satisfaction.

The singular copings and built-in metal Bar-Stop solve earlier difficulties of interconnecting varying implant heights and misalignments. The prefabricated Ti Bars create a strong metal-resin laminated splint supported by the MTI Implants.

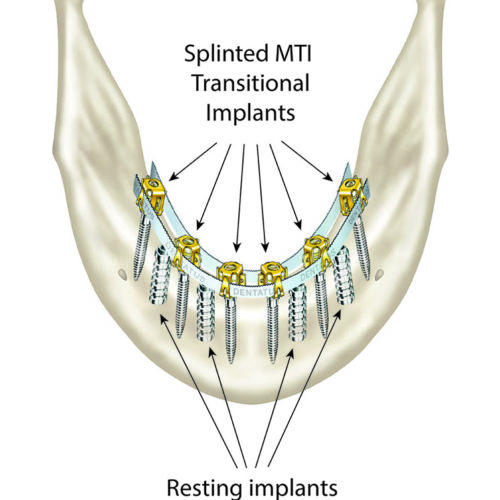

CASE: IMMEDIATE FIXED BRIDGE SUPPORTED WITH 8 MTI IMPLANTS

Clinical procedures courtesy of Nitzan Bichacho, D.M.D., Cobi J. Landsberg, D. M.D. Tel Aviv, Israel

FEATURES & BENEFITS
MTI PRODUCTS
LINKS & DOWNLOADS

EASY TO PLACE, LESS TIME TO FABRICATE

CROSS-ARCH STABILIZATION

SINGULAR COPINGS SOLVE DIFFICULTIES
of interconnecting implants

PROVIDES TEETH AND STABILIZATION
to the patient during healing of traditional dental implants

INTERCONNECTED SPLINT
follows the prosthodontic criteria of cross-arch support

LOW-PROFILE SPLINT
is firmly cemented into place

HOLLOWED-OUT DENTURE BASE,
filled with silicon material, holds the denture in place

COMPLETE KITS

MK-NOW (Implant and Component Kit)
6 Implants 1.8 mm Diameter, 3 of each: 17 and 21 mm Length
1 CePo Pilot Drill, Short
1 MTI Hand Driver
1 MTI R/A Handpiece Driver
6 Singular Copings
2 Titanium Connective Bars
9 Gingival Spacers
2 Flexible Splint Frames – 1 Small & 1 Large
1 Sterifix Cassette for Small Components (70 x 45 mm)
MK-1 (Implant and Component Kit)
18 Implants 1.8 mm Diameter, 6 of each: 14, 17, and 21mm Length
2 CePo Pilot Drills (1 Short & 1 Long)
1 MTI Hand Driver
1 MTI R/A Handpiece Driver
18 Singular Copings
6 Titanium Connective Bars
30 Gingival Spacers
12 Comfort Caps
12 Impression Copings
12 Lab Analogs
1 Paralleling Extension Rod
2 Flexible Splint Forms (1 Small & 1 Large)

MTI IMPLANTS

MR-2006 (Pack of MTI Implants with Components)
6 Sterile MTI Implants
(Diameter: 1.8 mm, Thread Length: 6.5 mm, Total Length: 14 mm)
2 Titanium Connective Bars, 100 mm Long
6 Singular Copings
12 Assorted Gingival Spacers
MR-2106 (Pack of MTI Implants with Components)
6 Sterile MTI Implants
(Diameter: 1.8 mm, Thread Length: 9.5 mm, Total Length: 17 mm)
2 Titanium Connective Bars, 100 mm Long
6 Singular Copings
12 Assorted Gingival Spacers
MR-2206 (Pack of MTI Implants with Components)
6 Sterile MTI Implants
(Diameter: 1.8 mm, Thread Length: 13.5 mm, Total Length: 21 mm)
2 Titanium Connective Bars, 100 mm Long
6 Singular Copings
12 Assorted Gingival Spacers

IMPLANT DRIVERS

MR-1060 (MTI Hand Driver)
1 MTI Hand Driver
MR-1050 (MTI R/A Handpiece Driver)
1 MTI R/A Handpiece Driver
MR-120 (Hand Adapter for R/A Driver)
1 Hand Adapter for R/A Driver
MPD (Ratchet Driver)
1 Ratchet Driver
MPD-MR-1 (MTI Ratchet Insert)
1 MTI Ratchet Insert

ACCESSORIES

MR-2015 (Singular Copings)
12 Singular Copings
MR-2035 (Impression Copings)
20 Impression Copings
MR-2040 (Gingival Spacers)
20 Gingival Spacers
MR-1030 (Comfort Caps)
12 Comfort Caps
MR-2050 (Titanium Connective Bars)
3 Titanium Connective Bars
MR-2020 (MTI Lab Analogs)
20 MTI Lab Analogs
MR-1075 (Paralleling Extension Rods)
2 Paralleling Extension Rods
MR-2070 (Universal Flexible Splint Frames)
4 Universal Flexible Splint Frames, Small
MR-2072 (Universal Flexible Splint Frames)
4 Universal Flexible Splint Frames, Large
STX (Sterifix Cassette)
1 Sterifix Cassette:
Stainless steel box with perforated bottom and sliding lid.
Convenient for the sterilization of small instruments.
70 x 45 x 10 mm
